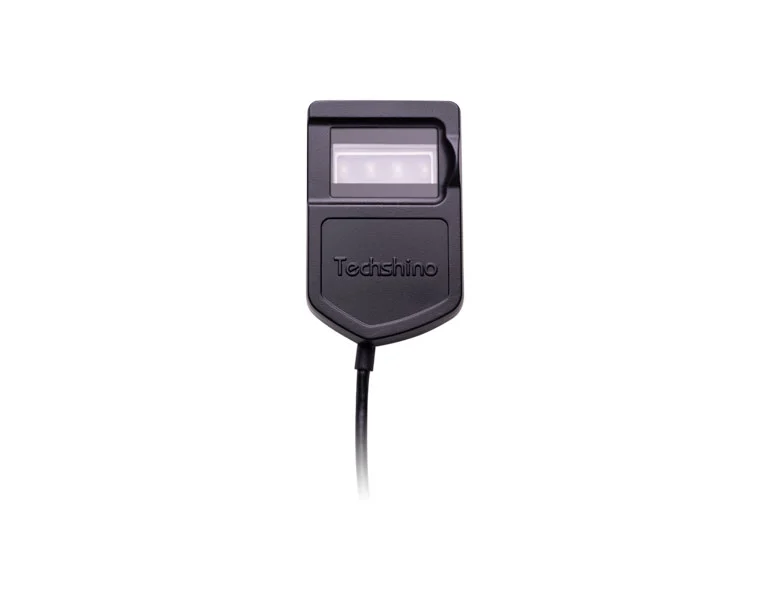

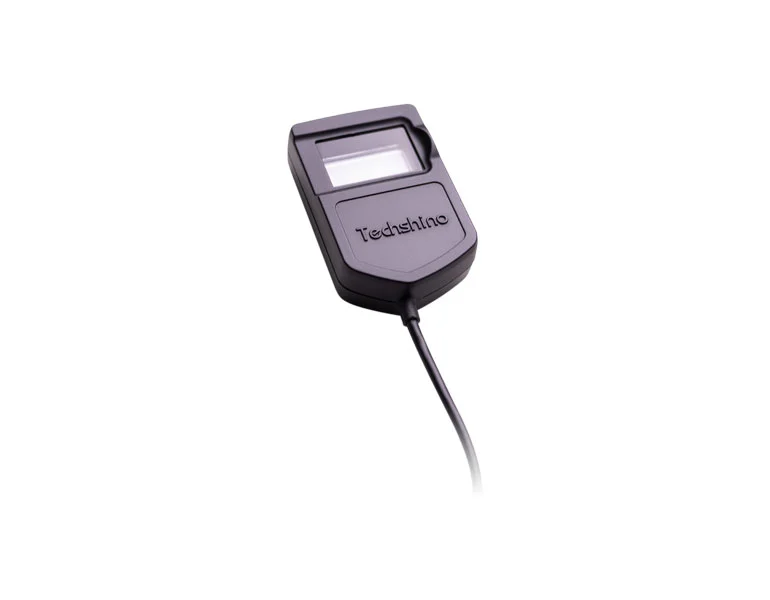

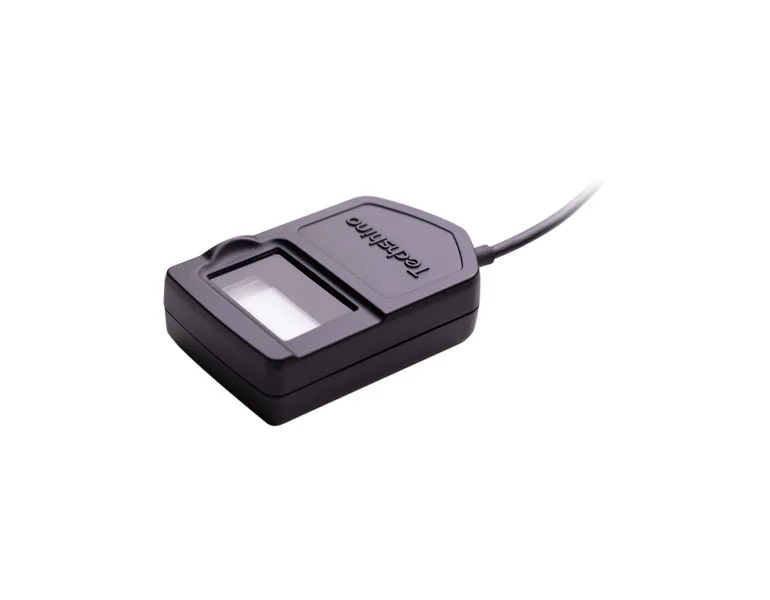

TCO310 fingerprint reader is an optical fingerprint acquisition module device independently developed by Eyecool. It has high-efficiency fingerprint acquisition function. Its upper surface is made of tempered glass, with excellent tactile sensation and strong finger detection function. It can realize fingerprint registration, identification and verification functions with the upper machine. The device is easy to carry and embedded into third-party equipment, which solves the problem of limited space for the installation of the scanners.
Support encryption of data features, support 3DES, RSA and other encryption algorithms.
Acquire finger image. store data in RAW, BMP and other formats, and process the acquired fingerprint image to generate fingerprint feature data.
Support fingerprint comparison within the module memory, making identity authentication more convenient.
The upper surface is made of tempered glass, with excellent tactility.
Compact device, easy to carry. integrate, and embedded in third-party equipment.
Compatible with FBI-PIV, MINEX III, ISO19794-2 and NIST-378 standards.
The device has obtained FBI-PIV, CE, ROHS, WEEE, WHQL(win7 / 8 / 8.1 / 10) certification, and passed India's STQC and BIS certification.
Basic Parameters | Standard Image Size | 256 * 360 pixels |
Resolution | 500ppi | |
Image Gray Scale | 256 | |
Capture Speed | >15 frames per second | |
Distortion | <1% | |
Interface | USB2. 0 | |
Voltage | 5V | |
Standby Current | ≤30mA | |
Working Current | ≤250mA | |
Dimensions | 56*36*16mm | |
Other Parameters | Working Temperature | -10°C~55°C |
Storage Temperature | -40°C~60°C | |
Relative Humidity | 93% |
Fingerprint biometric information collection,deduplication and identity verification of legal voters in election scenario.
It can be integrated into mobile payment devices such as POS machines to instantly confirm the identity of traders.
Bank tellers biometric login bank internal system using fingerprint reader.
