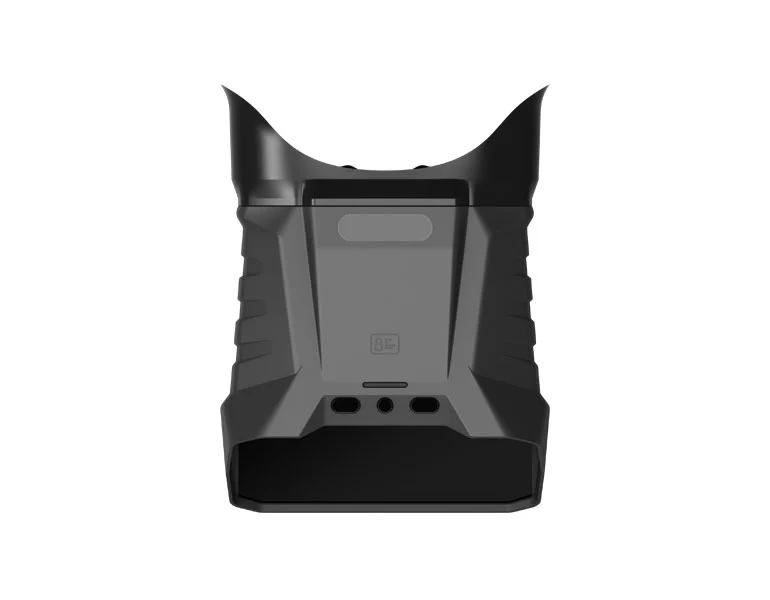

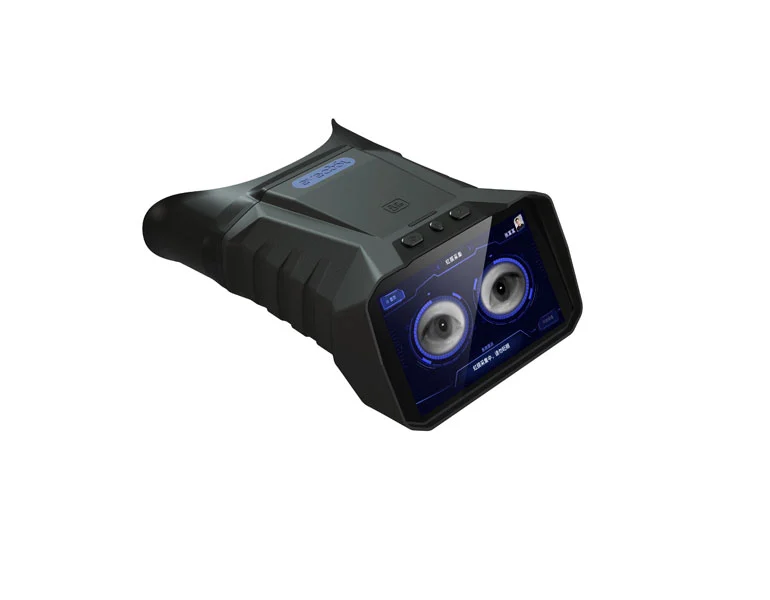

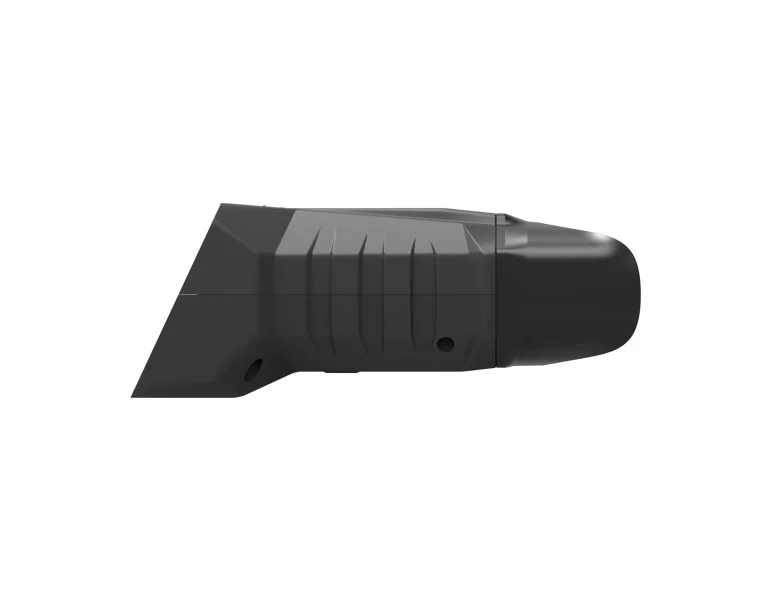

ECX108 Iris Drug Tester |
![]() |
|
CORE FUNCTIONS |
![]() |
One Click to Quick Filter |
The device integrates an iris drug detection module, equipped with a 5-inch high-definition touch screen and its own 4G and WiFi communication modules, and do not need networking. It can achieve one-click screening, which can complete the collection of sample collection in 5 seconds and output the screening result in 10 seconds. | |
![]() |
Normal Result | Abnormal Result | |
![]() |
![]() |
![]() |
Online Identity Verification |
The product comes with two modules, one is iris capture module which can capture high resolution binocular iris image compatible with criminal investigation standard, and the other is a face camera module, which conduct face verification online via 4G/WiFi or offline with embedded ID card reader. |
![]() |
![]() |
![]() |
Networked Real-Time Online Law Enforcement |
The device can run the drug screening function completely independently, and can also be connected with the public security intranet server in real time to conduct online law enforcement. All the collected data is comprehensively processed on the cloud, and only the authentication log is retained locally to ensure data security. The server data can be jointly handled with other public security system data, and the drug detection iris data can also be used for AI algorithm deep learning training and analysis, which can continuously improve the accuracy of algorithm. |
|
![]() |
PRODUCT ADVANTAGES |
![]() |
![]() |
|||
It's designed handheld and can be moved around any place to complete the drug test screening work. In the case of a poor network, it can complete the drug detection and screening work in the target place by a standalone machine; While the network conditions are good, the 4G/WiFi network can be used to communicate and coordinate with the iris drug screening management system and the internal association system of the public security to complete the data upload and sharing. | The iris drug screening system can not only complete the rapid screening of drug test, but also realize ID card reading and authentication, device management, personnel management and data sharing. The iris drug screening system meets the standards of iris collection and verification of criminal investigation standards, and can be docked with the criminal investigation iris library to accurately verify the identity of personnel. |
|||
![]() |
![]() |
|||
The iris drug screening system embeds a deep learning framework drug detection training engine independently developed by Eyecool Technology, which uses binocular iris image for drug detection and screening. Compared with some monocular iris drug detection device, it is more accurate. With the accumulation of user data, the learning of drug test data can be continuously carried out, and the improvement of drug detection and screening ability can be automatically completed. |
The iris drug screening system is embedded with the original iris drug detection algorithm of Eyecool Technology, which can currently complete a drug test within 20s, and the screening efficiency will be higher and higher in the future with the optimization and improvement of the algorithm. | |||
![]() |
![]() |
|||
The iris drug screening system can automatically complete the identity collection verification and drug test screening of personnel, and upload the drug test collection data in real time. It can be greatly avoided due to some social relations of law enforcers, resulting in illegal law enforcement. | Through the above functional advantages, it can be seen that Eyecool iris drug screening system can quickly complete the drug detection and screening work, and the future drug-related crime space will become smaller and smaller, helping law enforcement personnel to comply with the law and enforce the law strictly, . It can greatly improve the deterrent ability of drug-related personnel to commit crimes and safeguard the dignity of the law. |
PARAMETERS |
Basic Paramters |
Screen |
5 inches, 720P resolution, multi-touch |
Camera |
Equipped with 4M RGB HD color image sensor, supports backlight and low light wide dynamic imaging (face capture and recognition) Equipped with 2M IR High-definition infrared image sensor (iris capture, recognition, drug detection) |
|
Fill Light |
Visible light fill light Near-infrared 810nm light source fill light |
|
Button |
Button A: Rapid drug screening Button B: Switch on and off Button C: Quick iris identity verification |
|
Card Reader |
National ID card applicable ( optional) |
|
Communications |
WiFi, 4G USB TYPE-C |
|
Interfaces |
USB2.0 ,Type C ,HOST OTG |
|
Light Indicator |
Red: test positive for drug use; Green: test negative for drug use; Blue: Working status. |
|
Speaker |
Built-in 1W speaker, play prompt voice |
|
Microphone |
HD voice capture |
|
Power |
5V/2A |
|
Performance Parameters |
Users |
10000 |
Distance |
Contact acquisition (Tips: fit the eye cup tightly to prevent light leakage) |
|
Capture Speed |
<5s |
|
Screening Speed |
10s |
|
Other Paramters |
Working Temperature |
-20° ~ +55° |
OS |
Android |
APPLICATION SCENARIO |
It can be widely used in entertainment site, hotel check-in, border control, driver, army and civil servants. |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
