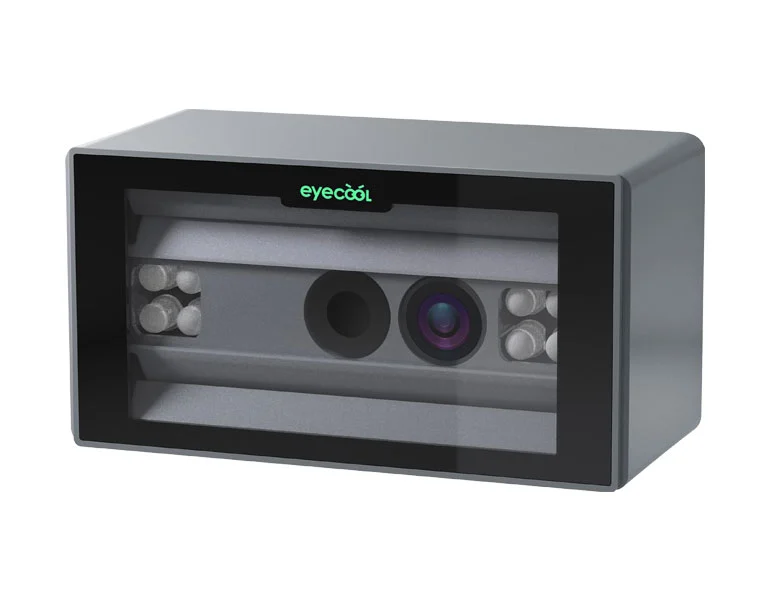

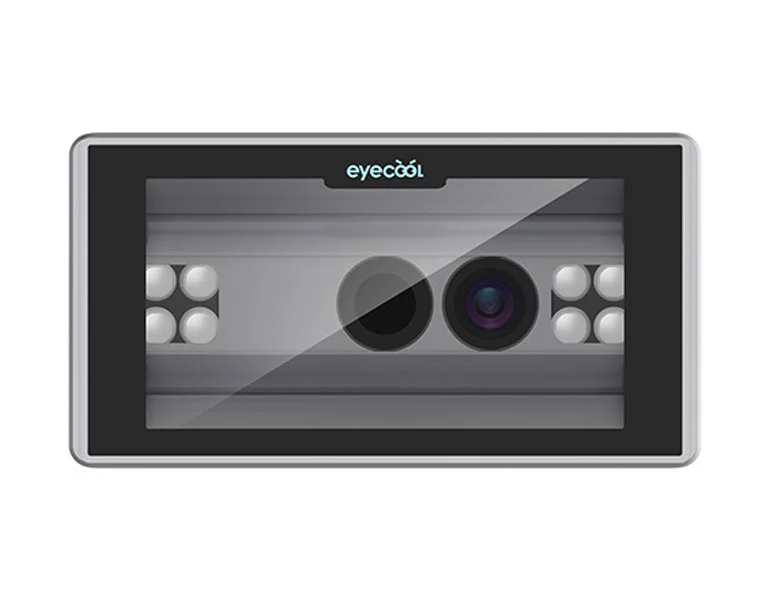

Multi-Modal Face & Iris Integrated Recognition Device ECX101

A multimodal fusion biometric terminal that can realize face, iris and other facial features acquisition and identity verification. The device can auto-adjust angle in line with user's height to realize auto capture of face, iris and other facial features
Multi-Modal Face & Iris
Integrated Recognition Device

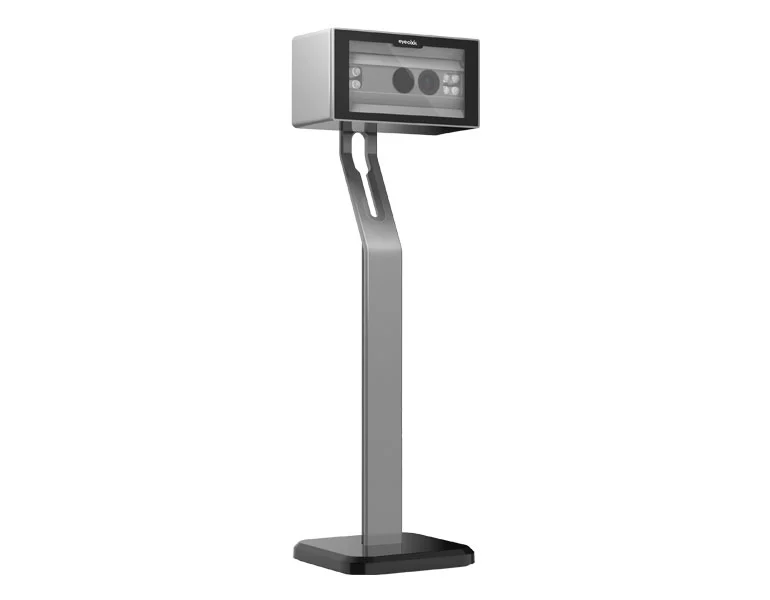

  Eyecool Technology multi-modal integrated recognition device (ECX101) is a biometric terminal which can realize face, iris and other facial features acquisition and identity authentication. With the Eyecool self-developed  multimodal integrated biometric algorithm,  the device can  auto-adjust angle
in line with user's height to realize auto capture of face, iris and other facial features, bringing both convenience in facial recognition and preciseness in iris recognition to users. The device can be widely used in on-site image acquisition and identity authentication scenario.


Precise and Convenient Independent Learning
Sense and recognize facial, iris and multimodal features automatically. Automatic capture of multimodal information, fusion features registration
and recognition.

Intelligent Prompts Automatic Height Adaptation
Tri-color indicator lights, text and voice prompts.  Users can adjust the
distance to camera according to the prompts, making interaction more
The device can automatically rotate and aim at the position of human eyes according to users’ heights, it adapts to the height of 1.4 - 1.9 meters, dyna-
mically locates and captures iris and face.

Diverse Verification Flexible Use
Support local comparison, cloud comparison and multi-modal comparison. Flexible deployment, small and  exquisite  appearance,  which can be used independently or embedded as a module.

Drive Free Installation Complete Certifications
Single USB port communication mode with auxiliary power supply port, can
connect external 5V/1A, adapter auxiliary power input.
The device has obtained various international certificates such as CE, RoHS
and FCC.


Dual Cameras Color camera: it can support up to
3 million wide dynamic modules
Near infrared camera: 2M and above resolution
Near Infrared Fill-in Light Two side near infrared light source fill-in light (850nm)
Identification Mode Iris recognition / face recognition /
multimodal face fusion recognition
Identification Type Local identification / Private Cloud Identification /
Public Cloud Identification (Alibaba cloud)
Liveness Detection Algorithm with multimodal face fusion liveness detection
Indicator Lights

Red, green and blue indicator lights

Too far away (blue), too close (red), appropriate distance (green)
Video Output Format MJPEG, YUV
Interface USB3. 0 / USB2. 0
Device Frame Rate More than 25 frames
Identification Distance 40cm – 70cm (iris and face capture distance at the same time)
Height Adaptation Range 150cm~190cm (installed at 170cm, real-time tracking)
Operating System Compatible Win 7 and above, Android 5.0 and above, Linux
People Number Supported More than 1,000,000
Voice Prompt The algorithm automatically judges the distance of iris and face, and gives voice prompts
Horn Built in 1W speaker, which can play voice prompts
Rotating Components Angle sensor, DC motor
Temperature Range -35~60°C


Simultaneous face and iris biometric feature enrollment, deduplication and verification of voters during election.

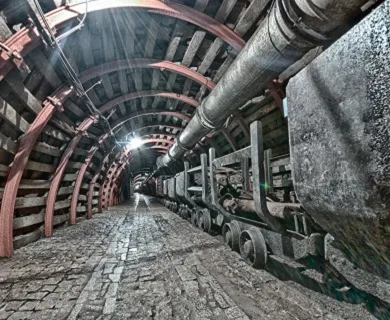

Coal Mine
Applicable to the scenarios that parts of users' faces
are  coverd or  hard  to  identify,  such as  coal mine, hospital operating room access control, etc.
Biometric Database Construction
Simultaneous iris and face biometric feature collection and deduplication of all the people in the country or province. The database can be accessed and synch-ronized with the other systems such as border control, criminal, etc.
