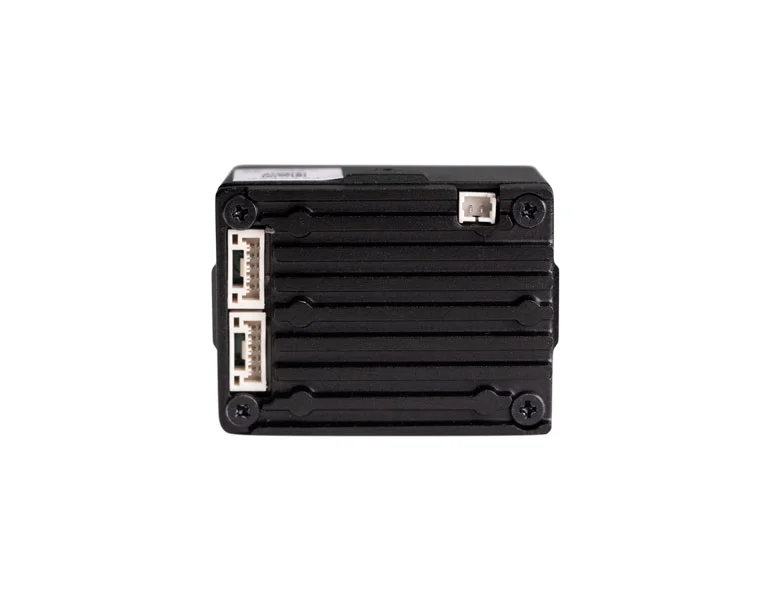

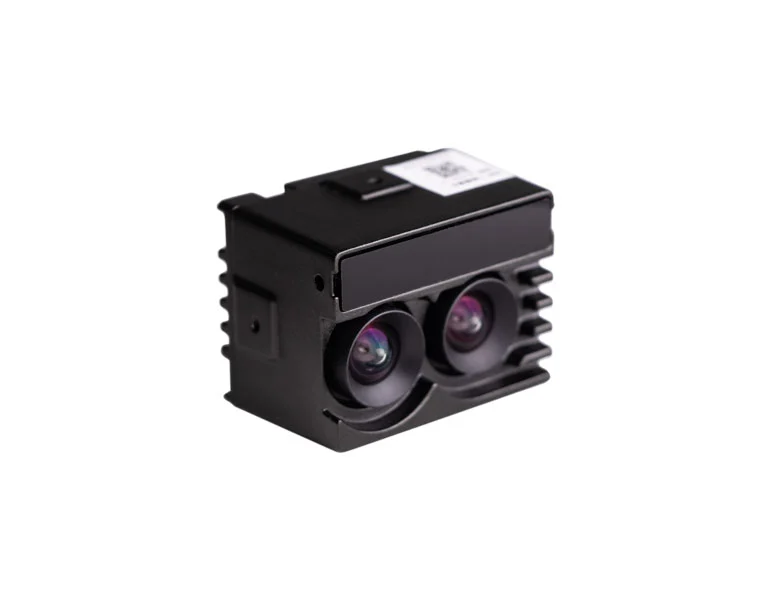

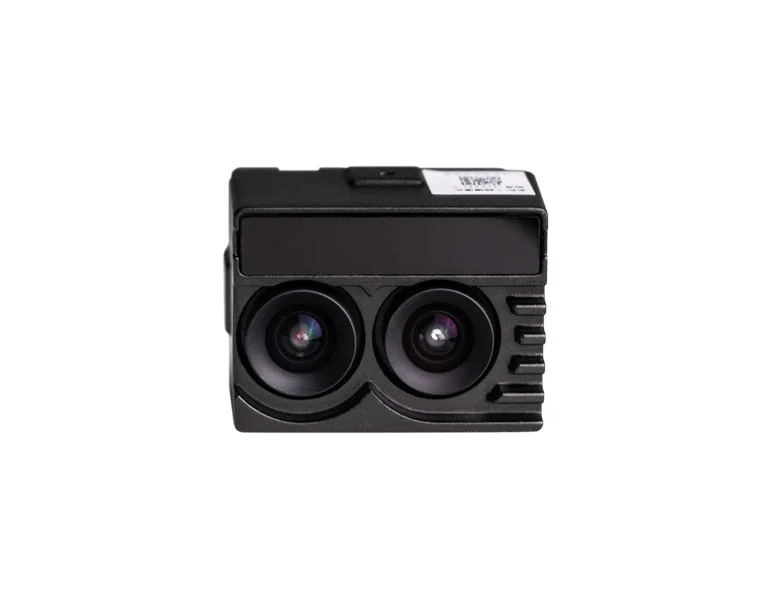

Dual Mode Face Recognition Camera Module TCF261

Device has both near-infrared and visible light image acquisition functions. In combination with the Eyecool original face recognition algorithm, it realizes the functions of accurate face image acquisition, recognition and liveness detection.
Quantity
-
+
Description
Description
TCF261
Dual Mode Face Recognition
Camera Module
The device adopts near-infrared fill light technology, and has the video acquisition functions using both near-infrared and visible light cameras. Combined with the original face recognition algorithm developed by Eyecool, it can realize accurate face recognition, image acquisition, liveness detect-
ion and other functions under different light conditions.  Compact size, easy  to be  embedded  into
self-service equipment. Using abundant software development interfaces, it can be closely combin-
ed with the third-party application management system, and is widely used in many scenarios such
as on-site image acquisition, liveness detection, face recognition and identity security authentication.



PRODUCT ADVANTAGES

Compact Size Accurate and Convenient
The module structure is small and simple,
easy to be embedded into all kinds of self-
service devices such as VTM, ATM, etc.

Support automatic capture of face images, face  detection
and comparison,  automatic identification of target people
and black / white list management

Dual Mode Cameras Advanced Algorithms
Support near infrared and visible light imaging.
Dual mode liveness detection can be performed
without cooperation to prevent attacks from pho-
tos,
videos and non living face images.

Equipped with the face recognition algorithm of the indep-
endent
intellectual property rights of Eyecool which realizes
face detection
and recognition. At the same time, the CMOS
photosensitive chip is
used to improve the pixels and ensure
the face recognition rate and authentication rate.


High Definition and Performance
The captured image has high definition and camera has unique processing scheme for various color conditions. The camera has strong
light processing
ability and can take clear images under strong light, weak light and backlight; At the same time, the exposure time, white
balance, contrast, brightness,
saturation and other parameters can be automatically controlled, and the color restoration is high.


PARAMETERS

Basic Parameters

Product Type

Dual mode camera: near infrared and visible light

Sensor

CMOS

Pixel

Color: 3 million pixels; Near infrared: 2 million pixels

Resolution

Color:
320 * 240
640 * 480
1280 * 720
1920 * 1080
2048 * 1536

Infrared:
320 * 240
640 * 480
1280 * 720
1920 * 1080

Maximum Frame Rate

Color:

25FPS @ 2048 * 1536

25FPS @1920*1080

25FPS @1280*960

25FPS @1280*720

25FPS @1280*720

25FPS @1024*768

25FPS @800*600

25FPS @640*480

25FPS @320*240

Infrared:

[email protected] 1920 * 1080

[email protected]*720

[email protected]*480

30FPS @320*240



Output Format

MJPEG, YUV

Interface Type

Dual USB2.0

Drive Type

Drive free

Identification Distance

400-1200mm

Imaging Area

4.73*3.52mm

Light Distortion

Less than 1%

System Support

Windows XP, Windows 7, Windows 8, windows 10, Linux system

Performance Parameters

Camera Lens

HD lens

Exposure Control

Automatic

White Balance

Automatic

Wide Dynamic

100dB (support semi outdoor environment)

Signal to Noise Ratio

39dB

Infrared Spectrum

850nm

Other Parameters

Working Temperature

-30~50

Power Supply

USB 5v power supply

Working Current

Color: < 300mA

Infrared: < 350mA

Overall Dimensions

41.9x31. 9x26mm

Appearance

Metallic matte black



APPLICATION SCENARIO

Finance
The device is widely used for identity authentication in the financial industry, and embedded in bank integrat-ion and self-service  equipment  such  as  ATM, CDM,
self-service payment machine, self-service card issu-
ing machine, self-service printer, etc.
Election
Face biometric information collection, deduplication
and identity authentication of legal voters

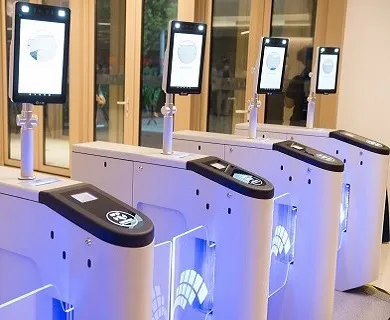

Self-Service Equipment
It is used for  self-service scenarios  such  as  access control, attendance system and encryption equipment that require face collection and comparison
